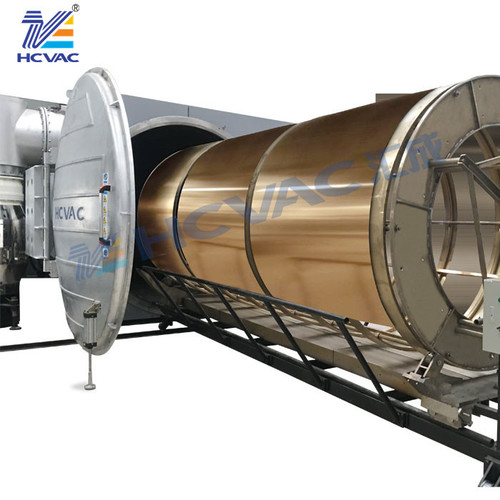

HCVAC Furniture Metal Parts, Elevator Stainless Steel Sheet PVD Titanium Coating Machine

The Furniture metal parts, elevator stainless steel sheet PVD titanium coating machine is designed for stainless steel sheet and pipe, stainless steel parts to get a decorative coating by ion plating technique, the ion plating layer has a real metal texture, which is much different from chemical coating.

The machine can get all kinds of colors on stainless steel products, inluding golden, rose gold, bronze, antique-bronze,coffee, blue, purple, black etc.

We can make machine Diameter from 800mm until 3500mm, height from 800mm until 7500mm, it suitable for coating all kinds of stainless steel sheet, stainless steel pipe, and stainless steel parts and furniture including, chair, table, handrail, display showcase, door handle, door frame,advertising board, tableware, flatware, utensil etc.

Stainless steel sheets size(2 pieces per cycle,3 pieces per cycle,4 pieces per cycle,6 Pieces per cycle)

size: 4" x 8" (1219mm x 2438mm)  size: 4" x 10" (1219mm x 3048mm)  size: 5" x 10" (1523mm x 3048mm)  size (1500mm*4000mm) or Longer.

Stainless steel tubes: 3-6 Meters Long, Diameter upto 127mm.

We have installed this machine in Korea,Thailand,Indonesia, German,Austrialia India U.A.E.,Malaysia,Turkey,Iran, Egypt and other countries, we can provide turnkey project for customers,including stainless steel cutting,slitting,8k mirror,No.4.hairline,etching,PVD and plastic lamintor line.

With three sets of large power vacuum pumping systems, high pumping speed, short cycle time; With 34-56 pieces of round arc targets, they are installed reasonable, at the same time, equipment is equipped with pulsed bias system, which make the adhesion of coating strong, color of coating uniform.

Touch screen + PLC control achieved full automatic of equipment, manual and auto can be switched any time, which make machine reliable and easy operation.

Color series:

Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au

Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu

Silver white series: CrN, CrSiN, Zr (micro N)

Grey series: Ti, stainless steel (S.S), (S.S) N

Coffee color series: TiCN, TiAlCN, ZrC

Blue series: TiO, CrO, TiALN

Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C,O) and DLC

Easy to implement

  To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the parts history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner:  HCVAC Technology, including mature technics and coatings.

Technical parameters:
